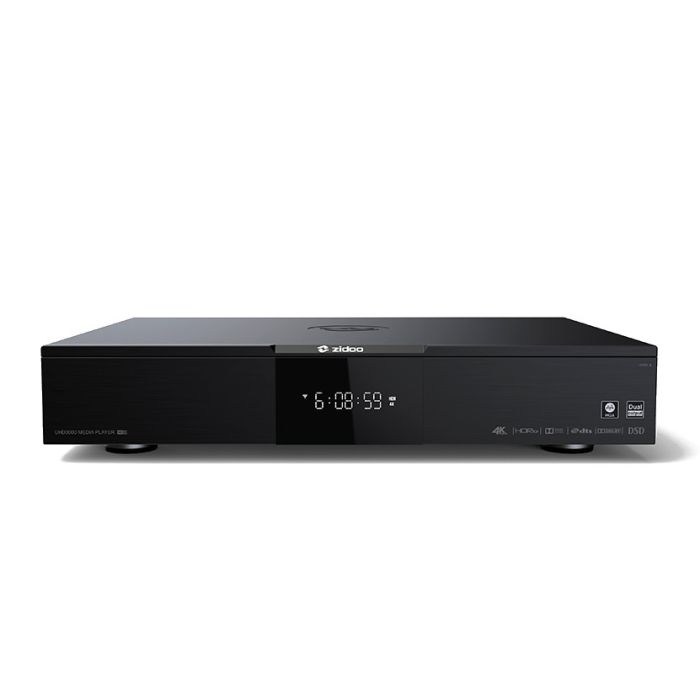

ZIDOO UHD3000

Specification:

Model: UHD3000
Front Display: LED
Chassis: Aviation aluminum alloy
OS: Android 9.0
CPU: Realtek RTD1619DR ARM Cortex-A55(hexa-core)
GPU: ARM Mali-G51 MP3
RAM: 4GB DDR4
Internal Storage: 32GB eMMC
Bluetooth: BT 4.2
WiFi: 2.4G+5G dual band WiFi, 802.11 a/b/g/n/AC 2T2R MIMO 867Mbps
Ethernet: 1*RJ-45(10/100/1000Mbps)

HDMI Output: 2.0a (4K@60fps/12Bit/HDR/BT2020/YCbCr 4:4：4 output) + 1.4 (Audio Only passthrough) separate audio and video output
Video Decoding: 4K@60p,HEVC/H.265 12Bit,HDR10,HDR10+,Dolby Vision
Audio Decoding: Support HD audio passthrough and decode 2 channels
Built-in XMOS+ESS 9068 DAC,supporting DSD、MQA decoding.

USB Audio Input: USB audio input supports Windows 7, Windows 10, Mac and Android
Up to two channels DSD512, PCM 768KHz@32bit PCM, MQA decoding.
Other Audio Port: 1*Optical,1*Coaxial,1*RCA L/R,XLR L/R balanced

Analog Audio Characteristics:
Frequency range: 20Hz-20KHz +/-0.35dB
SNR: > 128dBrA
THD+N: < 0.00026%
Output level: (XLR) 4.0±0.4Vrms. (RCA) 2.0±0.2Vrms.
DNR: > 125dB
Crosstalk: > 135dBrA

Power Supply: AC 110~120/220~240V 50/60Hz (built-in switching power supply + linear power supply)
USB: 2*USB3.0,2*USB2.0
SATA: 2*SATA3.0 and 3.5" HDD bay (HDD is not included)
Other Ports: 1*IR input,1*RCA composite video connector,1*RS232
Dimensions: 312mm*430mm*72mm
