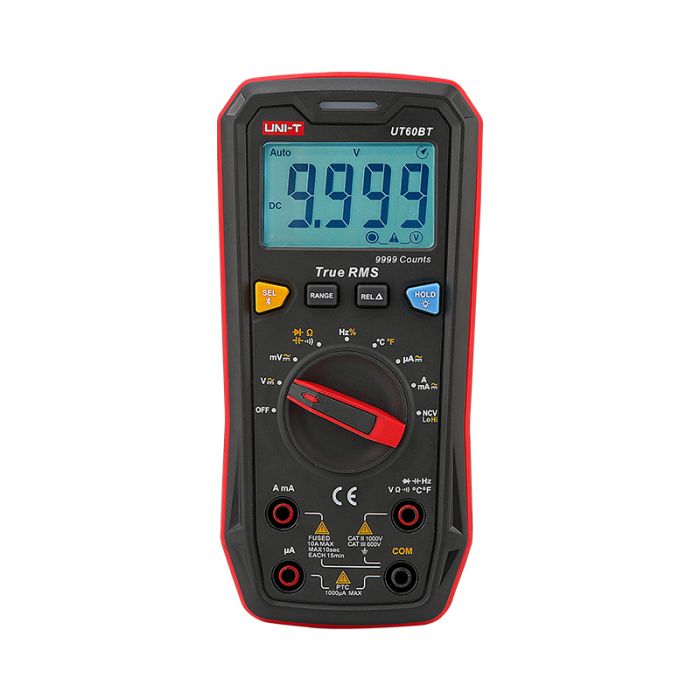

UNI-T UT60BT Bluetooth Digital Multimeter
Piegāde: 1–2 dienas
- Ražotājs
- UNI-T
UNI-T UT60BT Bluetooth Digital Multimeter
The UNI-T UT60BT digital multimeter is an advanced measuring device that combines functionality, precision and convenience. It offers True RMS measurements, 9999 count resolution and non-contact voltage detection. The UT60BT can measure AC/DC voltage up to 1000 V, AC/DC current up to 10 A, resistance up to 100 MΩ, as well as temperature, duty cycle, diodes and circuit continuity. The device is equipped with Bluetooth, hold function, backlit display, tri-color LED indicator and relative mode. It supports both automatic and manual range selection, and a low charge level is indicated by a corresponding icon. The multimeter complies with CE, UKCA and cETLus safety standards, and its rugged, double-injected housing ensures durability and comfort.
Functions that increase work efficiency
The device provides accurate measurements regardless of signal type thanks to True RMS technology, and non-contact voltage detection allows you to quickly and safely check cables and installations. The Bluetooth connectivity function enables wireless data transmission, making it significantly easier to document measurement results. In addition, the multimeter offers a duty cycle function, diode and continuity test, a charge status indicator, and an intuitive analog graphic bar for quick recognition of changing values.
Rugged design and convenience of use
The UT60BT is distinguished by its durable, ergonomic housing with a double injection molded structure for resistance to mechanical damage. The backlit display allows comfortable use in dimly lit areas, and the three-color LED display makes it easy to quickly evaluate measurement results. A choice of automatic or manual operating range allows you to tailor the device's operation to your preferences, and Relative Mode enables precise differential measurements. The UNI-T UT60BT is ideal for those who want professional quality and advanced features in a compact form.
Included
- digital multimeter
- thermocouple
- instruction manual
| Manufacturer | UNI-T |
|---|---|
| Model | UT60BT |
| Bluetooth connection | Supported |
| Display resolution | 9999 counts |
| Automatic range selection | Supported |
| REL mode (relative measurement) | Supported |
| Non-contact voltage detection (NCV) | Supported |
| Diode test | Supported |
| Circuit continuity test | Supported |
| Acousto-optical indicator (NCV / continuity / battery status) | Built-in |
| Low charge indicator | ≤ 3,6 V |
| Data hold function | Supported |
| Automatic shutdown | After 15 minutes |
| Operating temperature range | 0°C ~ 40°C |
| Safety class | CAT II 1000 V / CAT III 600 V |
| Battery | 1.5V AAA x 3 |
| Color | Red, black |
| Weight | 290 g |
| Dimensions | 169 x 81 x 46mm |
Measuring ranges
| DC voltage | 9.999 mV / 99.99 mV / 999.9 mV / 9.999 V / 99.99 V / 999.9 V (accuracy: ±(0.5%+3)) |
|---|---|
| AC voltage | 9.999 mV / 99.99 mV / 999.9 mV / 9.999 V / 99.99 V / 999.9 V (accuracy: ±(0.8%+3)) |
| DC current | 999.9 μA / 999.9 mA / 9.999 A / 10 A (accuracy: ±(0.8%+3)) |
| AC current | 999.9 μA / 999.9 mA / 9.999 A / 10 A (accuracy: ±(1.0%+3)) |
| Resistance | 9.999 Ω / 99.99 Ω / 999.9 Ω / 9.999 kΩ / 99.99 kΩ / 999.9 kΩ / 9.999 MΩ / 99.99 MΩ (accuracy: ±(0.8%+2)) |
| Capacitance | 9.999 nF / 99.99 nF / 999.9 nF / 9.999 μF / 99.99 μF / 999.9 μF / 9.999 mF (accuracy: ±(4.0%+5)) |
| Frequency | 99.99 Hz ~ 9.999 MHz (accuracy: ±(0.1%+5)) |
| Duty Cycle ratio | 0.1% ~ 99.9% (accuracy: ±(3%+5)) |
| Temperature measurement | -40°C ~ 1000°C / -40°F ~ 1832°F (accuracy: ±4°C / ±5°F) |
Kopējie parametri
| Ražotājs | UNI-T |
|---|
Svars
| Bruto svars (kg) | 1 |
|---|
Garantija
| GarantijaJuridiskām personām garantija 1 gads! Ja nav norādīts mazāk | 2 gadi |
|---|
