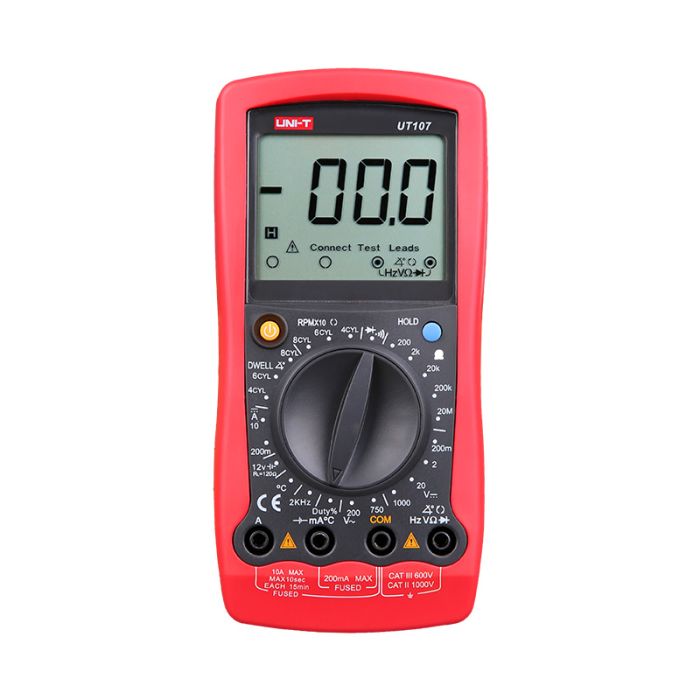

UNI-T UT107 handheld car multimeter
UNI-T UT107 handheld automotive multimeter
The UNI-T UT107 is a handheld digital multimeter that is designed specifically for use in automotive workshops and by mechanics involved in vehicle electrical diagnostics. It offers a wide range of measurement functions to check the condition of ignition systems, power supplies, batteries and many other system components. It is a reliable tool for field and garage work - durable, accurate and easy to use.
Wide range of measurements
The UT107 provides precise measurements of direct current (DC) voltage from 200 mV to 1000 V and alternating voltage (AC) up to 750 V. In addition, the meter supports DC current measurement of up to 10 A, which makes it possible to control the current consumption of various car components. Resistance measurement is possible from 200 Ω all the way up to 20 MΩ, which works well for diagnosing sensors, wires and connections.
Features dedicated to automotive diagnostics
The UT107 multimeter offers more than just classic measurements - the device is equipped with a number of functions designed with vehicles in mind. It allowsamong others. for testing a 12-volt battery, as well as measuring the duty cycle from 1% to 90%, which is useful for evaluating the operation of control systems. It also supports the Dwell/Tach function for 4-, 6- and 8-cylinder engines, so you can precisely control the operation of the ignition system.
Temperature and frequency measurement
The UT107 can also measure temperature over a wide range from -40°C to as much as 1000°C, thanks to an attached temperature probe. This allows you to quickly diagnose overheating components or check the operating temperature of sensors and cooling systems. The tester also supports frequency measurement up to 2 kHz, which works well for analyzing signals in electronic and ignition systems.
Included
- multimeter
- test leads
- holster
- temperature probe with point contact
| Manufacturer | UNI-T |
|---|---|
| Model | UT107 |
| DC voltage measurement range | 200mV/2V/20V/1000V ±(0.5%+2) |
| AC voltage measurement range | 200V/750V ±(0.8%+5); 200mA/10A ±(0.8%+5) |
| Resistance | 200Ω/2kΩ/20kΩ/200kΩ/20MΩ ±(0.8%+5) |
| Frequency | 2 kHz ±(2%+5) |
| Temperature | -40°C~1000°C ±(2%+8) |
| Battery test | 12 V ±(3%+5) |
| Duty cycle | 1~90% ±(4%+5) |
| Input impedance for DCV | approx. 10MΩ |
| Dwell/Tach | 4CYL/6CYL/8CYL ±(3%+5) |
| Power supply | 9V battery (6F22) |
| Display size | 60 x 54 mm |
| Weight (with holster) | 351 g |
| Dimensions | 179 x 88 x 39 mm |
