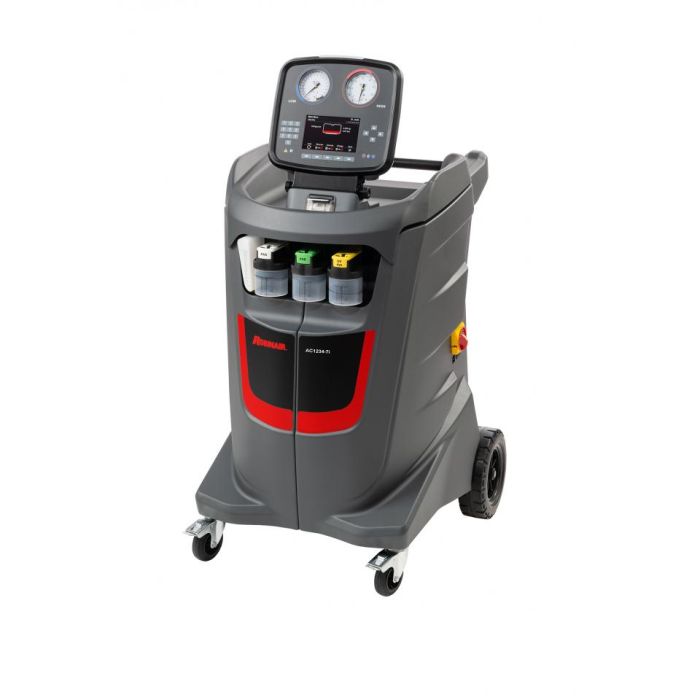

Robinair AC1234-7i Fully automated air conditioning service station

Premium air conditioning service equipment is the new benchmark for R1234yf freon filling equipment. The Robinair AC1234-7i fully automatic station meets the highest requirements for air conditioning filling equipment for both passenger cars and commercial vehicles. This station also supports hybrid AC systems and therefore complies with SAE and European standards.

- 99% deep extraction
- Mobile app
- N2H2 / N2 leakage test
- Swivel control panel ensures user-friendly operation
- The smart app allows you to access the station remotely
- Integrated leak detection system for inert gases (NOx, nitrogen)

Technical parameters:

- Freon: R-1234yf
- Operating mode: fully automatic
- Freon extraction: Automatic
- Extraction accuracy:> 99%
- Oil removal: Automatic (with electronic scale)
- Vacuuming: Automatic
- Leak test: Automatic
- Pressure leak test (N2 / N2H2): yes
- Oil injection: automatic (PAG / POE) (with electronic scale)
- UV injection: automatic (with electronic scale)
- Freon filling: automatic (with electronic scale)
- Rinsing function: with optional equipment
- Printer: yes
- Deaeration system: Automatic, electronically controlled
- Support for hybrid AC systems: yes
- Manual control valves: none
- Low and high pressure indicators: 100 mm without pulsation, Class 1
- Tank pressure indicator: digital
- Filling hoses: 2.5 m
- Screen: 7 "color screen
- Compressor: 0.28 kW
- Vacuum pump: 170 l / min
- Bako capacity: 19.5L
- New oil tanks: 2 x 250 ml (hermetically sealed)
- Exhaust oil tanks: 1 x 250 ml
- UV tank: 1 x 250 ml (hermetically sealed)
- Dimensions: 105 x 75 x 77 cm
- Weight: 112 kg
- Power supply: 230V / 50-60Hz
- Electronic database: Yes
- Programmable user database: yes
- AC system performance test: on request
- Universal car wash adapter set: on request
- USB connection: yes
- Wireless interface: yes
- Mobile app interface: yes
