HELIX Conductor
CONDUCTOR
One-touch remote control

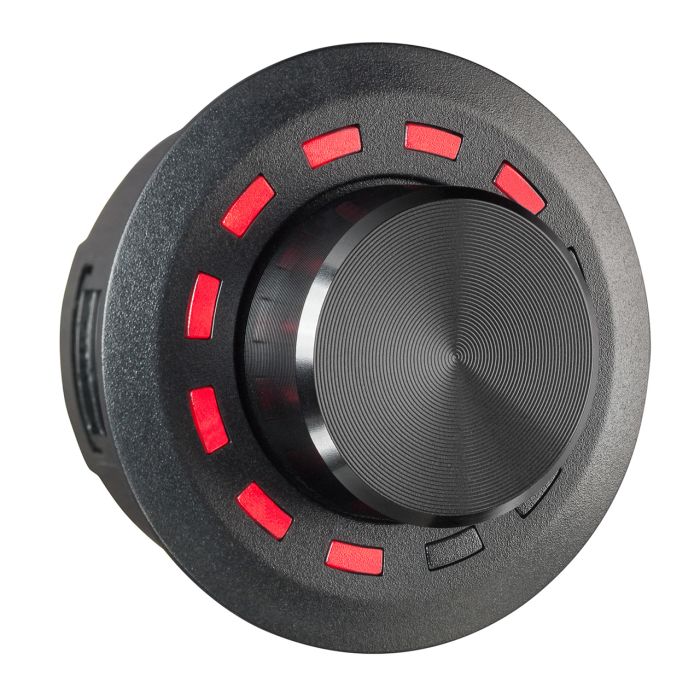

The CONDUCTOR combines design and functionality in perfection. With just one knob you have all important functions of your (DSPs) sound system fully under control – from volume adjustment, signal source selection and setup change up to the control of an optional Bluetooth module.
Tailor-made for your needs
The CONDUCTOR can always be optimally adapted to your needs – whether as a simple subwoofer remote or as a control unit for complex system configurations. For example, two playback zones with different volumes: music for the parents in the front and a radio play for the children in the back.
All signal sources under control
With the CONDUCTOR you can manage all your connected signal sources in no time at all. For example, use your smartphone as a digital media source and intuitively control its playback (play / pause, track forward / back) and volume in combination with the optional Bluetooth Extension Card.
Sound Setup switch according to your music taste
Manage different optimized sound setups of your DSP for rock, pop, classic or absolute pure sound and enjoy your music always with optimal sound quality.
Seamless integration
Thanks to its compact, fully symmetrical design and high-quality materials, the CONDUCTOR can be integrated almost seamlessly into the existing vehicle interior and blends in with its appearance as inconspicuously as an original part.
Features
Up to 4 individual volume menus configurable (Master, Digital, HEC/AUX, Subwoofer, Rear Attenuation)
Volume range selectable (60 dB, 24 dB, 12 dB)
Volume steps selectable (1 dB steps, 0.5 dB steps)
Individual color for each volume menu configurable
Sound Setup selection between all 10 memory slots
Intuitive Bluetooth playback control and pairing activation (only in combination with an optional Bluetooth Extension Card)
12 x RGB-LEDs for visual feedback
Wide color space with over 16 million colors
Brightness and automatic dimming function configurable
Easy installation
Flush mount installation with Ø 40 mm hole cut-out
5 m cable harness with split connector and single connector supply
Optional housing for on-dash installation available soon
Full configuration and updatability through the DSP PC-Tool software
Technical data
| CONDUCTOR for Control Input | |
| Housing | ABS housing with machined aluminum knob |
| Hardware | Rotary encoder, 12 x RGB-LEDs & 48 MHz ARM processorr |
| Connection | Single connector supply through MiniDIN |
| Cable length |
5 m total length – split into 4.8 m connection cable + 0.2 m CONDUCTOR cable |
| Dimensions (Ø x H) |
Ø 46 x 28.7 mm / Ø 1.81 x 1.13” |
| Installation depth |
17 mm / 0.67" |
Compatibility
| CONDUCTOR for Control Input | |
| DSP PC-Tool | 4.75a or higher |
| BRAX | DSP |
| HELIX | DSP ULTRA DSP PRO MK3* DSP.3S* DSP.3 DSP MINI MK2* DSP MINI V TWELVE DSP MK2* V TWELVE DSP V EIGHT DSP MK2 M SIX DSP M FOUR DSP |
| MATCH | UP 10DSP* UP 8DSP* M 5.4DSP* |
