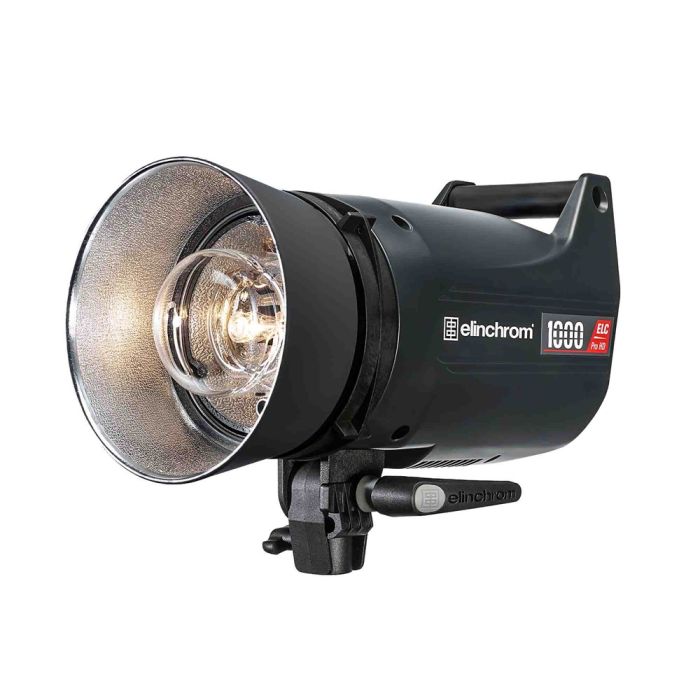

Elinchrom ELC Pro HD 1000 EL-20616

The Elinchrom ELC Pro HD 1000 is the studio flash that is adapted for the most demanding environments. It has outstanding performance and offers new ways of working through super-fast charging, short burning time and loads of creative functions. It's not just the performance that makes the Elinchrom ELC impressive - it's also about how these features are combined with high user friendliness. It's an uncompromising studio flash with function and performance designed for the toughest conditions.

Very fast loading time

Extremely short burning time

Large effect range

Outstanding stability and color reproduction

Super fast charging

The Elinchrom ELC Pro HD 1000 charges in an impressive 1.2 seconds. To full effect! At lowest power, the charging time is an improbable 0.054 sec! The shooting pace can be fully adjusted to the subject, without the risk of black frames or unevenly exposed image sequences.

Extremely short burning time

Shortest burning time for the ELC Pro HD 1000 is a fantastic 1/5260 sec at output power 80Ws (Elinchrom scale 3.6). The combination of short burning time and high output results in razor-sharp images of fast-moving subjects.

Large effect range

The output can be controlled from 7Ws up to 1000Ws (Elinchrom scale 0.3 - 7.3). The difference between maximum and minimum strength is 8 f-stops. The ELC Pro HD 1000 handles everything from portraits with a shallow depth of field to product images with razor-sharp details on even large objects.

Outstanding stability

The combination of fast charging time, short burning time and large power range places high demands on the design of the flash. The ELC Pro HD 1000 is built for long, fast-paced work sessions while maintaining stability in exposure and color temperature.

User friendly

The Elinchrom ELC Pro HD 1000 has a control panel that speaks plain language. The flash's performance and all functions are regulated via intuitive controls while the display shows setting menus and set values. The simple handling inspires to use the flash's advanced functions.

Setting light

The setting light is a full 300W. Choose between proportional mode with flash strength, free, max/min and off. In addition, the setting light can indicate when the flash has charged up to full power (VFC).

Multi-voltage

ELC Pro HD automatically adapts to incoming voltage, 90-265V, and power. Most external battery units, as well as voltage converters, can be used.

Wireless remote control from camera, computer and iOS smartphone

The ELC Pro HD has a built-in Skyport, which provides the opportunity for advanced remote control of the flashes. Via Skyport Transmitter Speed, the flash is triggered and regulated at a distance of up to 300 m. Complete with Elinchrom Bridge provides wireless communication between computer and flashes as well as iOS smartphone and flashes. Via Elinchrom Studio Software, you have a full overview of all the functions of the flash from the computer, while you can also control the flashes via the Elinchrom App in iPhone and iPad.

Eyecell slave function

A very clever feature of the ELC is the intelligent Eye-Cell slave function which can "read" the camera flash so that the ELC is triggered correctly.

Additional functions

The ELC Pro HD has features that mean unlimited possibilities for creative photographers.

Delay - Adjustable flash delay for synchronization at any time during the exposure. Combination of several flash units produces loads of effects.

Sequence - Link multiple flash units together for fast burst shooting. Up to 20 flash units, at full output power, can be connected. Because the flash units can fire in a continuous cycle, long bursts of images can be shot.

Strobe  - Gives a stroboscopic effect on the same frame.

Included in ELC 1000 (EL-20616)

Studio flash Elinchrom ELC Pro 1000

Protective Glass Dome

Setting lamp Halogen 300W / GX 6.35 / 230V

Protective cover

Reflector 16 cm

Mains cable 5m

Velcro Cable Ties

Manual

Quick Guide
