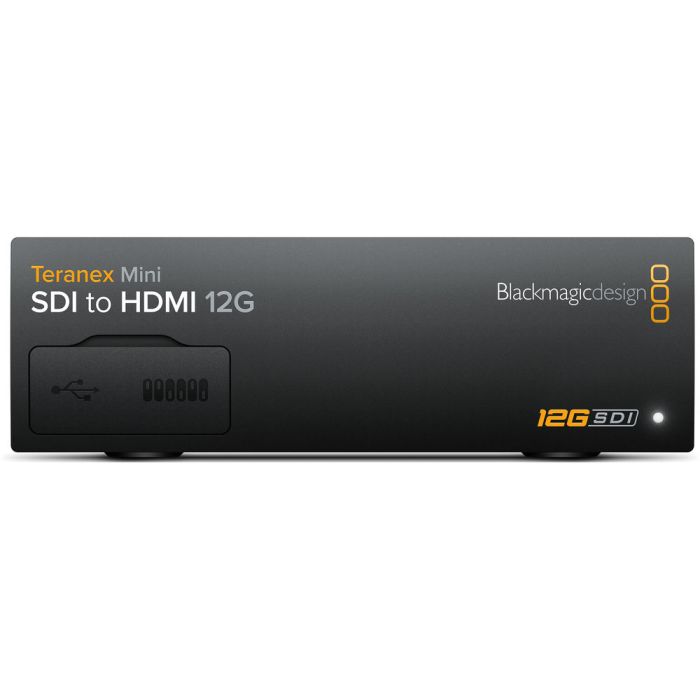

Convert from 12G-SDI to HDMI. Supports all video formats including SD, HD, 6G and 12G-SDI rates and includes down converter when working with a HDMI monitor, which will select the best format it can support. De-embed audio to balanced analog or AES/EBU formats and timecode output. Also includes Instant Lock on HDMI output as well as 33 point LUT. Perfect for using HDMI televisions as SDI broadcast monitors and for connecting to video projectors.
Connections
SDI Video Inputs
1 x 12G-SDI SD/HD/2K/4K auto switching.
Please click here for a summary of recommended cables to use with Blackmagic 12G‑SDI products.
SDI Video Outputs
1 x 12G-SDI loop output.
HDMI Video Outputs
1 x HDMI 2.0 type A connector with support for 2160p60.
Analog Audio Outputs
2 channels professional balanced analog audio via XLR connectors. Right XLR can be configured for Timecode output.
Digital Audio Outputs
4 channels professional 110Ω balanced digital audio via XLR connectors. Right XLR can be configured for Timecode output.
YUV 4:2:2 in HD, 2K and 4K. 33 point LUT can be loaded via the Teranex Utility.
Software
Software Control
Mac™ and Windows™ software upgrade via USB or Ethernet.
Internal Software Upgrade
Via included updater application.
Operating Systems
Mac 10.15 Catalina,
Mac 11.1 Big Sur or later.
Windows 10, 64-bit.
Settings Control
Basic Settings Control
Mini Switches, USB and Ethernet via free software utility.
Optional Front Panel Control
Front mounted Smart Panel with LCD, rotary knob and six settings buttons.
Power Requirements
Power Supply
1 x built in international AC power supply with IEC C14 inlet. IEC Power cable required. 100 - 240VAC Input.
Power Over Ethernet
Can be powered via 48V DC using PoE+ (power over ethernet).
Power Consumption
16 Watts
Operational Voltage Range
100 - 240V AC
Physical Specifications
Environmental Specifications
Operating Temperature
0° to 40°C (32° to 104°F)
Storage Temperature
-20° to 60°C (-4° to 140°F)
Relative Humidity
0% to 90% non‑condensing
What's Included
Teranex Mini SDI to HDMI 12G
Kopējie parametri
Ražotājs
Blackmagic
Svars
Bruto svars (kg)
1
Garantija
GarantijaJuridiskām personām garantija 1 gads! Ja nav norādīts mazāk
2 gadi
