Convert from 12G-SDI to Analog. Use SD, HD, 6G and 12G-SDI rates and convert to analog video output. Built in down converter lets you connect Ultra HD sources to component video equipment in SD or HD. Allows you to connect analog equipment including Betacam SP, VHS, and video monitors.
Connections
SDI Video Inputs
1 x 12G-SDI SD/HD/2K/4K auto switching.
SDI Video Outputs
1 x 12G-SDI loop output.
Analog Video Outputs
Composite, Y/C or Component.
Analog Audio Outputs
2 channels professional balanced analog audio via XLR connectors. Right XLR can be configured for timecode output.
Digital Audio Outputs
4 channels professional 110Ω balanced digital audio via XLR connectors. Right XLR can be configured for timecode output.
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10
SDI Video Rates
SDI video connections are auto switching between standard definition SDI, high definition level A and level B3G-SDI,6G-SDI, and 12G-SDI.
SDI Video Sampling
4:2:2 and 4:4:4
SDI Audio Sampling
Television standard sample rate of 48 kHz and 24-bit.
SDI Color Precision
4:2:2 and 4:4:4
SDI Color Space
YUV
Analog Video Standards
525i59.94 NTSC, 625i50 PAL
Analog Color Space
REC 601, REC 709
Analog Color Precision
YUV 4:2:2 and RGB 4:4:4 in HD, 2K and 4K.
Format Conversion
HD down conversion
Software
Software Control
Mac™ and Windows™ software upgrade via USB and Ethernet.
Internal Software Upgrade
Via included updater application.
Operating Systems
Mac 10.15 Catalina,
Mac 11.1 Big Sur or later.
Windows 10, 64-bit.
Settings Control
Basic Settings Control
Mini Switches, USB and Ethernet via free software utility.
Optional Front Panel Control
Front mounted Smart Panel with LCD, rotary knob and six settings buttons
Power Requirements
Power Supply
1 x built-in international AC power supply with IEC C14 inlet. IEC Power cable required. 100 - 240VAC Input.
Power Over Ethernet
Can be powered via 48V DC using PoE+ (power over ethernet).
Power Consumption
16 Watts
Operational Voltage Range
100 - 240V AC
Physical Specifications
Environmental Specifications
Operating Temperature
0° to 40°C (32° to 104°F)
Storage Temperature
-20° to 60°C (-4° to 140°F)
Relative Humidity
0% to 90% non‑condensing
What's Included

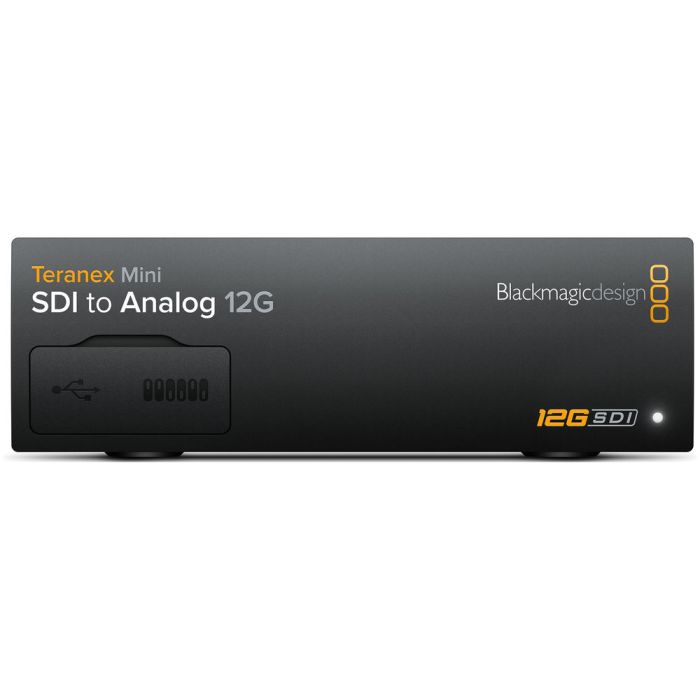

Teranex Mini SDI to Analog 12G
