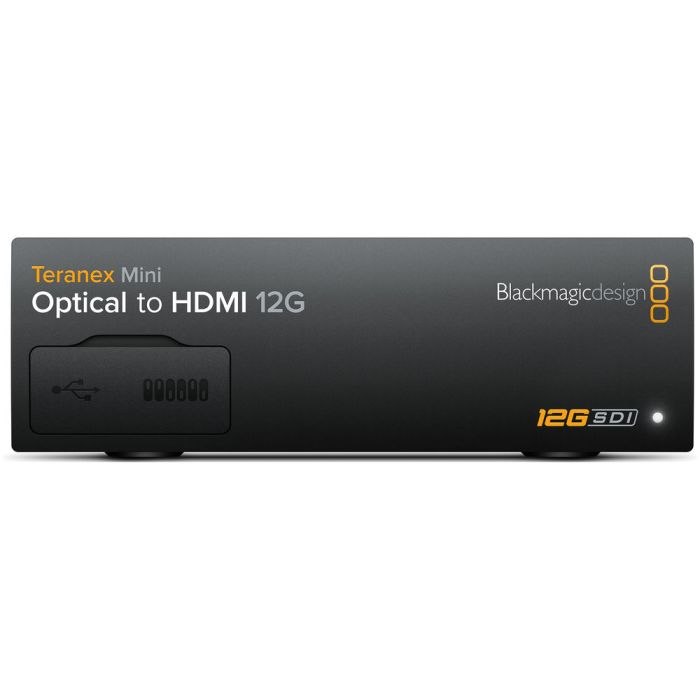

Now you can convert from SDI and SMPTE optical fiber to HDMI! Simply insert the SMPTE optical fiber module of your choice to get video and embedded audio over massive distances using 3G, 6G, or 12G-SDI optical fiber! You get professional 12G-SDI and XLR connections, a down converter for viewing Ultra HD sources on HD displays plus ethernet for remote admin control. The optical fiber SFP module is sold separately so you can purchase the SMPTE compatible 3G-SDI, 6G-SDI or 12G-SDI SFP module to suit your workflow. You can even add an optional Smart Panel to add LCD monitoring and push button controls to your Teranex Mini!
Connections
SDI Video Inputs
1 x 12G-SDI SD/HD/2K/4K auto switching.
Optical Fiber Connection (optional)
Optional 3G, 6G or 12G-SDI single mode 1310 nm SFP module with LC connector.
Optical Fiber Video Inputs
1 x 12G-SDI SD/HD/2K/4K auto switching.
Please click here for a summary of recommended cables to use with Blackmagic 12G‑SDI products.
Optical Fiber Video Loop Through
1 x 12G-SDI loop output.
HDMI Video Outputs
1 x HDMI 2.0 type A connector with support for 2160p60.
Analog Audio Outputs
2 channels professional balanced analog audio via XLR connectors. Right XLR can be configured for Timecode output.
Digital Audio Outputs
4 channels professional 110Ω balanced digital audio via XLR connectors. Right XLR can be configured for Timecode output.
YUV 4:2:2 in HD, 2K and 4K. 33 point LUT can be loaded via the Teranex Utility.
Software
Software Control
Mac™ and Windows™ software upgrade via USB or Ethernet.
Internal Software Upgrade
Via included updater application.
Operating Systems
Mac 10.15 Catalina,
Mac 11.1 Big Sur or later.
Windows 10, 64-bit.
Settings Control
Basic Settings Control
Mini Switches, USB and Ethernet via free software utility.
Optional Front Panel Control
Front mounted Smart Panel with LCD, rotary knob and six settings buttons
Power Requirements
Power Supply
1 x built in international AC power supply with IEC C14 inlet. IEC Power cable required. 100 - 240VAC Input.
Power Over Ethernet
Can be powered via 48V DC using PoE+ (power over ethernet).
Power Consumption
16 Watts
Operational Voltage Range
100 - 240V AC
Physical Specifications
Environmental Specifications
Operating Temperature
0° to 40°C (32° to 104°F)
Storage Temperature
-20° to 60°C (-4° to 140°F)
Relative Humidity
0% to 90% non‑condensing
What's Included
Teranex Mini Optical to HDMI 12G
