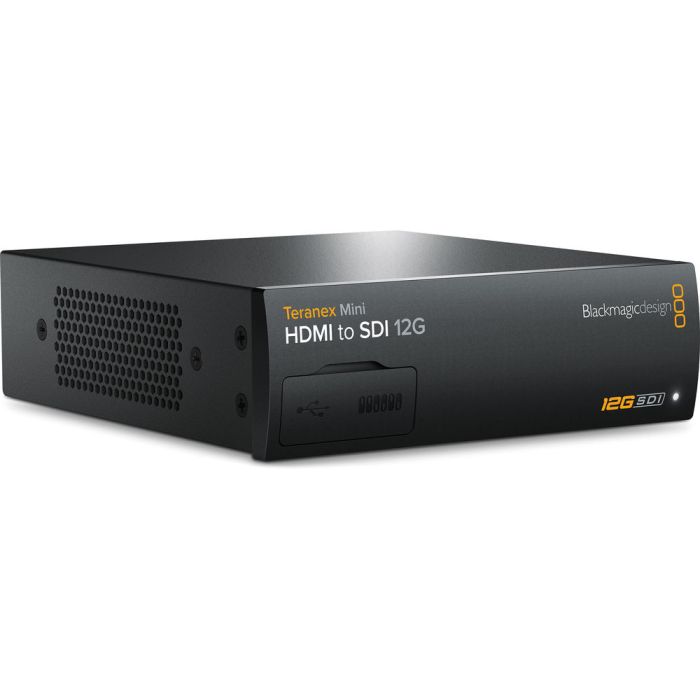

Convert from HDMI to 12G-SDI. Works with all video formats including SD, HD, 6G and 12G-SDI rates and includes an up converter for converting HD to Ultra HD. Embed audio from balanced analog or AES/EBU and timecode input. Ideal for converting HDMI consumer cameras to SDI, or adding SDI outputs to computers with HDMI connections.
Connections
SDI Video Outputs
2 x 12G SDI outputs. Automatically matches the SD, HD and 12G-SDI HDMI video input.
Please click here for a summary of recommended cables to use with Blackmagic 12G‑SDI products.
HDMI Video Inputs
1 x HDMI 2.0 type A.
Analog Audio Inputs
2 channels professional balanced analog audio via XLR connectors. Right XLR can be configured for timecode input.
Digital Audio Inputs
4 channels professional 110Ω balanced digital audio via XLR connectors. Right XLR can be configured for Timecode input.
HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Format Conversion
HD up and down conversion
Software
Software Control
Mac™ and Windows™ software upgrade via USB and Ethernet.
Internal Software Upgrade
Via included updater application.
Operating Systems
Mac 10.15 Catalina,
Mac 11.1 Big Sur or later.
Windows 10, 64-bit.
Settings Control
Basic Settings Control
Mini Switches, USB and Ethernet via free software utility.
Optional Front Panel Control
Front mounted Smart Panel with LCD, rotary knob and six settings buttons.
Power Requirements
Power Supply
1 x built in international AC power supply with IEC C14 inlet. IEC Power cable required. 100 - 240VAC Input.
Power Over Ethernet
Can be powered via 48V DC using PoE+ (power over ethernet).
Power Consumption
16 Watts
Operational Voltage Range
100 - 240V AC
Physical Specifications
Environmental Specifications
Operating Temperature
0° to 40°C (32° to 104°F)
Storage Temperature
-20° to 60°C (-4° to 140°F)
Relative Humidity
0% to 90% non‑condensing
What's Included
Teranex Mini HDMI to SDI 12G
