Embed up to 2 channels of audio from balanced analog, optical or HiFi RCA, or embed up to or 4 channels of AES/EBU digital audio into any SD, HD, Ultra HD or DCI 4K SDI video connection. Take audio from devices such as audio mixers, iPods and analog decks and embed it into SDI video connections for use with SDI routers and decks.
Connections
SDI Video Inputs
1 x 12G-SDI SD/HD/2K/4K auto switching.
Please click here for a summary of recommended cables to use with Blackmagic 12G‑SDI products.
SDI Video Outputs
1 x 12G-SDI output.
Analog Audio Inputs
2 channels professional balanced analog audio via XLR connectors, or 2 channel unbalanced analog line level via RCA connectors. Right XLR can be configured for timecode input.
Digital Audio Inputs
4 channels professional 110Ω balanced digital audio via XLR connectors. Right XLR can be configured for timecode input.
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10
SDI Video Rates
SDI video connections are auto switching between standard definition SDI, 1.5G‑SDI, 3G‑SDI, 6G‑SDI and 12G‑SDI.
SDI Video Sampling
4:2:2, 4:4:4
SDI Audio Sampling
Television standard sample rate of 48 kHz and 24-bit.
SDI Auto Switching
Automatically selects between SD, HD, 3G, 6G and 12G‑SDI.
SDI Color Precision
YUV 4:2:2 and RGB 4:4:4 in HD, 2K and 4K.
SDI Color Space
REC 601, REC 709
Software
Software Control
Mac™ and Windows™ software upgrade via USB and Ethernet.
Internal Software Upgrade
Via included updater application.
Operating Systems
Mac 10.15 Catalina,
Mac 11.1 Big Sur or later.
Windows 10, 64-bit.
Settings Control
Basic Settings Control
Mini Switches, USB and Ethernet via free software utility
Optional Front Panel Control
Front mounted Smart Panel with LCD, rotary knob and six settings buttons
Power Requirements
Power Supply
1 x built in international AC power supply with IEC C14 inlet. IEC Power cable required. 100 - 240VAC Input.
Power Over Ethernet
Can be powered via 48V DC using PoE+ (power over ethernet).
Power Consumption
16 Watts
Operational Voltage Range
100 - 240V AC
Physical Specifications
Environmental Specifications
Operating Temperature
0° to 40°C (32° to 104°F)
Storage Temperature
-20° to 60°C (-4° to 140°F)
Relative Humidity
0% to 90% non-condensing
What's Included

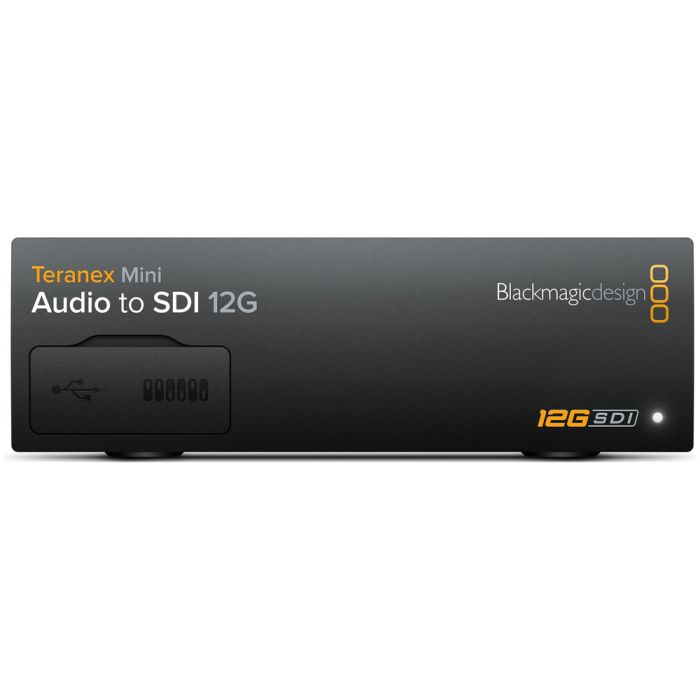

Teranex Mini Audio to SDI 12G
