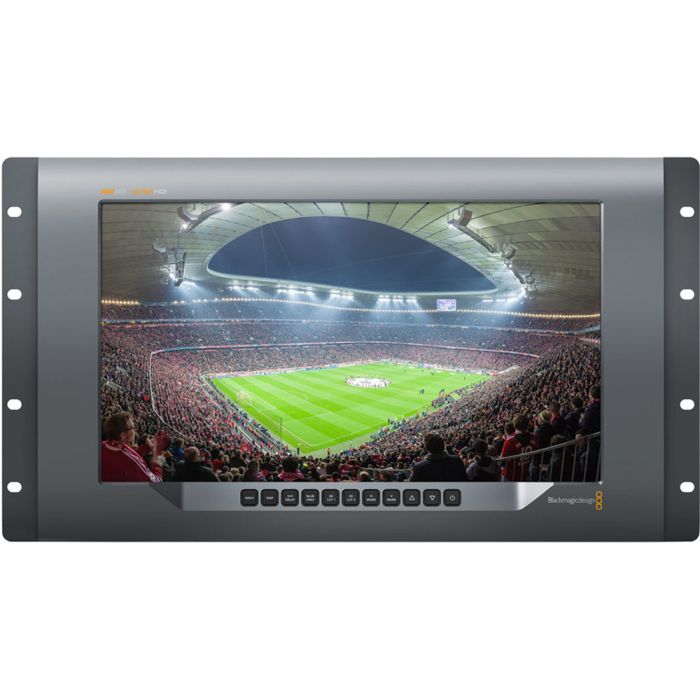

The world’s first full resolution Ultra HD broadcast monitor with multi rate 12G-SDI, an extremely bright display with wide viewing angle, plus advanced broadcast features like 3D LUT support, H/V delay, blue only, adjustable frame guides and more! SmartView 4K is compatible with all SD, HD and Ultra HD formats up to 2160p60. With both AC and DC power connections, SmartView 4K can be used in broadcast studios or on set.
Connections
SDI Video Input
2 SDI inputs automatically switch between SD, HD, 3G, 6G and 12G-SDI. Reclocked video output.
Please click here for a summary of recommended cables to use with Blackmagic 12G‑SDI products.
Optical Video Input
SFP Optical Fiber connector cage.
SDI Video Output
Automatically switches to input selection.
Multi Rate Support
Auto detection of 4K, 2K, HD or standard definition inputs.
SMPTE 259M,SMPTE 292M,SMPTE 296M,SMPTE 372M,SMPTE 424M Level A and B, SMPTE 425M,SMPTE 2082.
SDI Color Space
REC 601,REC 709
SDI Auto Switching
Automatically selects between SD, HD, 3G, 6G and 12G-SDI.
Video Sampling
4:2:2 and 4:4:4
Software
Internal Software Upgrade
Via included firmware updater software.
Settings Control
Via USB or Ethernet.
Operating Systems
Mac 10.15 Catalina,
Mac 11.1 Big Sur or later.
Windows 10, 64-bit.
Display
Display Element
15.6" TFT Active Matrix LCD
Display Resolution
3840 x 2160 pixels
Response
25 ms
Contrast Ratio
1000:1
Color Depth
16.7 million colors
Power Requirements
Power Supply
Built in IEC 100 - 240V AC power supply, plus DC input jack for external power.
Power Consumption
24 Watts
Physical Specifications
Environmental Specifications
Operating Temperature
0° to 40° C (32° to 104° F)
Storage Temperature
-20° to 60° C (-4° to 140° F)
Relative Humidity
0% to 90% non-condensing
What's Included
SmartView 4K
Kopējie parametri
Ražotājs
Blackmagic Design
Ekrāns
Rekomendētā izšķirtspēja
3840 x 2160
Spilgtums, cd/m2
-
Kontrasts
1000:1
Ekrāns un skatu meklētājs
Ekrāna izmērs (collas)
15.6"
Izmērs
Izmērs (mm)
482.1 x 265.9 x 69.6
Svars
Svars (g)
3600
Bruto svars (kg)
5
Garantija
GarantijaJuridiskām personām garantija 1 gads! Ja nav norādīts mazāk
2 gadi
