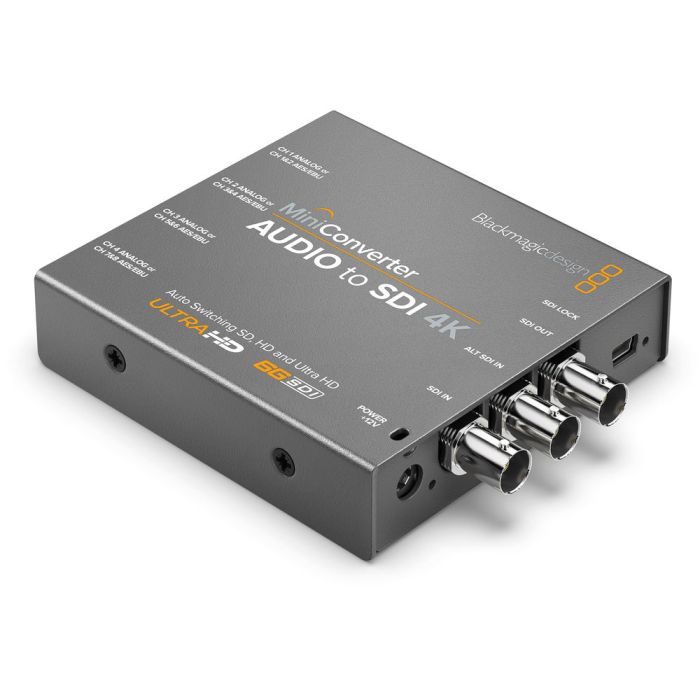

Mini Converter Audio to SDI 4K includes everything you need to embed 4 channels of analog audio or 8 channels of AES/EBU digital audio into any SDI video connection. Now you can embed professional audio from devices such as audio mixers and analog decks into SDI video connections for use with SDI routers and decks or to add extra audio channels to video converters!
Connections
SDI Video Inputs
1 x SD, HD or 6G‑SDI. 1 x ALT SDI Input for automatic switch over if main input fails.
SDI Video Outputs
1 x Embedded SDI Output.
Analog Audio Inputs
4 channels of professional balanced analog audio with standard 1/4 inch jack connections.
Digital Audio Inputs
8 channels of professional balanced digital with standard 1/4 inch jack connections.
SDI Redundant Input
Automatically switches over if main SDI input is lost.
SDI video inputs are automatically detected between standard definition and high definition.
SDI Video Sampling
4:2:2, 4:4:4
SDI Audio Sampling
Television standard sample rate of 48kHz and 24‑bit.
SDI Color Precision
4:2:2, 4:4:4
SDI Color Space
YUV, RGB
SDI Auto Switching
Automatically selects between SD, HD, 3G and 6G‑SDI.
Software
Software Control
Mac™ and Windows™ software upgrade via USB.
Internal Software Upgrade
Via included updater application.
Operating Systems
Mac 10.15 Catalina,
Mac 11.1 Big Sur or later.
Windows 10, 64-bit.
Settings Control
Mini Switches or USB software.
Power Requirements
Power Supply
+12V universal power supply included with international socket adapters for all countries. Cable tie point.
Power Consumption
8.40 Watts
Operational Voltage Range
12 ‑ 31V DC
Physical Specifications
Environmental Specifications
Operating temperature
0° to 40° C (32° to 104° F)
Storage temperature
-20° to 45° C (-4° to 113° F)
Relative Humidity
0% to 90% non‑condensing
What's Included
Mini Converter Audio to SDI 4K
12V universal power supply with international socket adapter
Kopējie parametri
Ražotājs
Blackmagic
Svars
Bruto svars (kg)
1
Garantija
GarantijaJuridiskām personām garantija 1 gads! Ja nav norādīts mazāk
2 gadi
