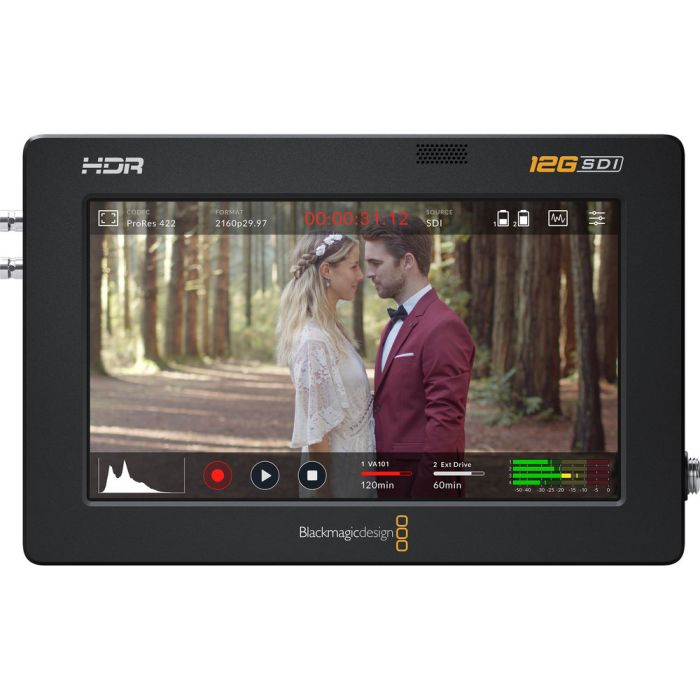

Blackmagic Video Assist 5” 12G HDR adds professional monitoring and recording to any SDI or HDMI camera in all HD, Ultra HD, 2K and 4K DCI formats! The super bright 2500nit 5 inch HDR monitor supports 3D LUTs and features professional scopes along with powerful focus assist and exposure tools that help you accurately set focus, exposure and frame shots. The built in SD card recorder save files in broadcast quality 10‑bit 4:2:2 ProRes or DNx formats. The files are all standard, so you can start editing immediately without having to convert them!
Connections
SDI Video Inputs
1 x Micro BNC
SDI Video Outputs
1 x Micro BNC
SDI Rates
270Mb, 1.5G, 3G, 6G, 12G.
HDMI 2.0a Video Inputs
1
HDMI 2.0a Video Outputs
1
Analog Audio Inputs
None, embedded audio only.
Analog Audio Outputs
1 x 3.5 mm headphone jack.
Built in Speaker
Mono
Screen Dimensions
5 inch 1920 x 1080.
Screen Brightness
2500nits
Screen Color
P3 wide color gamut
SDI Audio Inputs
16 channels embedded via 12G-SDI
SDI Audio Outputs
16 channels embedded via 12G-SDI
HDMI Audio Inputs
8 channels embedded via HDMI 2.0a
HDMI Audio Outputs
8 channels embedded via HDMI 2.0a
Remote Control
None
SD Interface
1 x UHS-II SD slot.
Storage Type
Removable SDXC UHS-II,SDXC UHS-I and SDHC UHS-I SD cards.
Supports DS, HS, SDR12, SDR25, DDR50, SDR50 and SDR104 SD cards.
Computer Interface
1 x USB Type‑C 3.1 Gen 1 for external drive recording, webcam out, initial setup, software updates and Video Assist Utility software control.
HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Media
Media
1 x UHS-II SD for Ultra HD, compatible with regular SD for HD recording. USB Type-C 3.1 Gen 1 for external drive recording.
Media Type
SDXC UHS-II, SDXC UHS-I and SDHC UHS-I SD cards.
Supported Codecs
Blackmagic RAW Constant Bitrate 3:1, Blackmagic RAW Constant Bitrate 5:1,Blackmagic RAW Constant Bitrate 8:1,Blackmagic RAW Constant Bitrate 12:1,Blackmagic RAW Constant Quality Q0,Blackmagic RAW Constant Quality Q5,
Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes 422 LT, Apple ProRes 422 Proxy, DNxHR HQX, DNxHR SQ, DNxHR LB, DNxHR HQX MXF, DNxHR SQ MXF, DNxHR LB MXF.
Control
Recorder Control
Integrated capacitive touchscreen LCD with Blackmagic OS onscreen controls for settings and navigating menus.
Scopes with picture in picture or picture overlay and opacity control. Waveform and Parade with standard and HDR graticules.
Operating Systems
Mac 10.14 Mojave,
Mac 10.15 Catalina or later.
Windows 8.1 and 10.
Power Requirements
Power Supply
1 x External 12V power supply.
Compatible with Sony NP-F style batteries.
(batteries not included)
Physical Specifications
Environmental Specifications
Operating Temperature
0° to 40° C (32° to 104° F)
Storage Temperature
-20° to 45° C (-4° to 113° F)
Relative Humidity
0% to 90% non-condensing
What's Included
Blackmagic Video Assist 5” 12G HDR
Universal power supply with locking connector and international adapters
Kopējie parametri
Ražotājs
Blackmagic Design
Ekrāns
Rekomendētā izšķirtspēja
1920 x 1080
Spilgtums, cd/m2
2500
Ekrāns un skatu meklētājs
Ekrāna izmērs (collas)
5
Izmērs
Izmērs (mm)
148.1 x 89.9 x 36.6
Svars
Svars (g)
409.9
Bruto svars (kg)
1
Garantija
GarantijaJuridiskām personām garantija 1 gads! Ja nav norādīts mazāk
2 gadi
