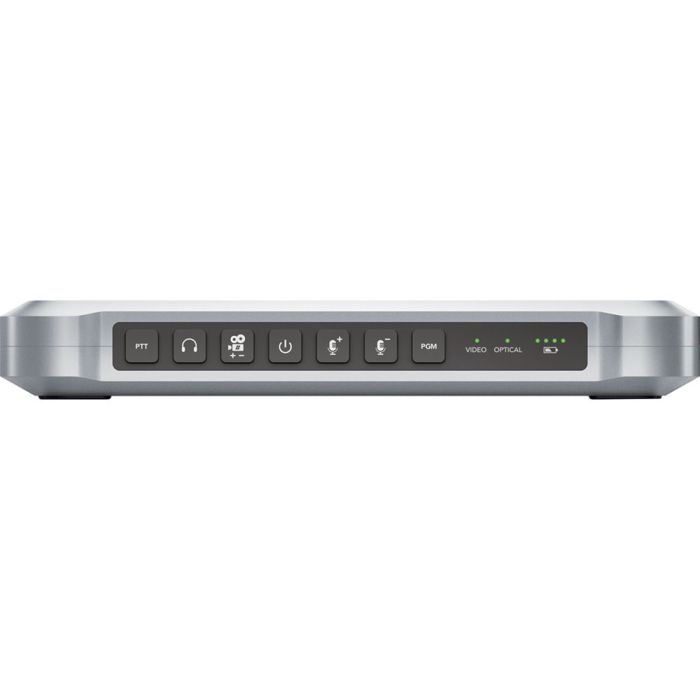

Get everything you need for cameras in live production with a single converter! Connect your camera’s SDI or HDMI outputs for conversion to optical fiber, while your switcher program feed can be fed back via optical fiber for camera monitoring. ATEM Camera Converter includes an internal battery, talkback, tally, and microphone inputs!
Connections
SDI Video Input
1 x 10 bit SD/HD switchable.
SDI Video Output
1 x 10 bit SD/HD switchable.
HDMI Video Input
1 x HDMI type A connector.
HDMI Video Output
1 x HDMI type A connector.
Talkback Audio
1 x 3.5mm stereo connector for talkback
microphone. 1 x 3.5mm stereo connector for stereo headphones, compatible with iPhone headsets.
Analog Audio
2 x balanced 1/4" TRS connectors (stereo)
microphone level in. When connected, replaces
audio from SDI In or HDMI In.
Optical Fiber Video Input
1 x single mode SD/HD switchable with LC connector.
Optical Fiber Video Output
1 x single mode SD/HD switchable with LC connector.
Optical Fiber Audio Input
1 x single mode camera audio inputs with LC connector. Channels 1 & 2 are camera audio.
Channels 15 & 16 are intercom audio.
Optical Fiber Audio Output
1 x single mode camera audio outputs with LC connector. Channels 1 & 2 are camera audio.
Channels 15 & 16 are intercom audio.
Computer Interface
1 x mini-B type USB 2.0 connector for
initial setup, firmware updates and
Converter Utility software control.
Television standard sample rate
of 48Khz,24 bit A/D conversion.
Video Sampling
4:2:2
Color Precision
10‑bit
Color Space
REC 601,REC 709
Multiple Rate support
SDI and HDMI are switchable
between standard definitlon and high definition
Software
Software Included
Converter Utility.
Operating Systems
Mac 10.11 El Capitan,
Mac 10.12 Sierra or later.
Windows 8.1 and 10.
Power Requirements
Power Supply
12V power supply included with international socket adaptors for all countries.
Physical Specifications
Environmental Specifications
Operating Temperature
0° to 40° C (32° to 104° F)
Storage Temperature
-20° to 45° C (-4° to 113° F)
Relative Humidity
0% to 90% non‑condensing
What's Included
ATEM Camera Converter
