UNI-T UT60EU Digital Multimeter

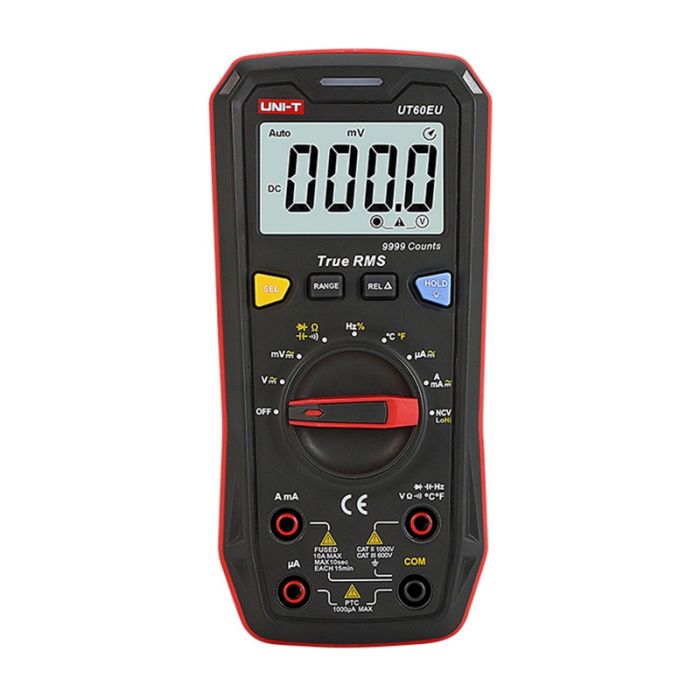

UNI-T UT60EU digital multimeter
The UNI-T UT60EU is designed for users who work in a wide variety of conditions - from workshops and industrial halls to electronic service and installation work in the field. Thanks to its accurate True RMS measurement, the UT60EU allows for reliable readings in both simple electrical circuits and environments with interference or nonlinear voltage waveforms. The device provides a resolution of 9999 counts, which means very precise measurement results even with small signal values. Its intuitive operation, backlit screen and robust housing make it perfect for the daily work of any professional who needs accurate and reliable measurements.
Wide range of measurements and high accuracy
The UT60EU supports measurements of AC and DC voltage up to 1000 V, current up to 10 A, and resistance up to 99.99 MΩ. Thanks to the True RMS function, the device provides accurate readings of pulsed power systems or inverters. Capacitor capacitance measurement goes up to 99.99 mF, and frequency can be measured from 99.99 Hz to 9.999 MHz. The multimeter also offers duty cycle and temperature measurements from -40°C to 1000°C.
Safety and additional utility features
The multimeter meets CAT II 1000V and CAT III 600V safety standards, and its rugged housing enhances drop and impact resistance. The UT60EU also features NCV (non-contact voltage detection), diode and continuity test with audible and visual indication, REL (relative measurement) function, data storage (Data Hold) and automatic shutdown after 15 minutes of inactivity. A three-color LED indicator shows power status and test results.
| Manufacturer | UNI-T |
|---|---|
| Model | UT60EU |
| DC voltage measurement range | 9.999mV/99.99mV/999.9mV/9.999V/99.99V/999.9V ±(0.5%+3) |
| AC voltage measurement range | 9.999mV/99.99mV/999.9mV/9.999V/99.99V/999.9V ±(0.8%+3) |
| DC current measurement range | 999.9uA/999.9mA/9.999A/10A ±(0.8%+3) |
| AC current measurement range | 999.9uA/999.9mA/9.999A/10A ±(1.0%+3) |
| Resistance measurement range | 999.9Ω/9.999kΩ/99.99kΩ/999.9kΩ/9.999MΩ/99.99MΩ ±(0.8%+2) |
| Capacitance measurement range | 9.999nF/99.99nF/999.9nF/9.999μF/99.99μF/999.9μF/9.999mF/9.99mF ±(4.0%+5) |
| Frequency measurement range | 99.99Hz～9.999MHz ±(0.1%+5) |
| Duty cycle | 0.1～99.9% ±(3%+5) |
| Temperature measurement range | –40℃～1000℃/–40°F～1832°F ±4℃/±5℉ |
| Automatic range | Yes |
| REL | Yes |
| NCV | Yes |
| Diodes | Yes |
| Continuity test | Yes |
| Audible-optical indicator (NCV/continuity/battery level) | Yes |
| Low battery indicator | Yes, ≤3.6V |
| Data storage | Yes |
| Automatic shutdown | after 15 min |
| Operating temperature | 0℃～40℃ |
| Power supply | 1.5V AAA x3 |
| Weight | 290 g |
| Dimensions | 169 x 81 x 46 mm |
Atribūti
| Ražotājs | UNI-T |
|---|
Svars
| Bruto svars (kg) | 1 |
|---|
