AUTEL MaxiIM IM508 Key and immobilizer programming tool

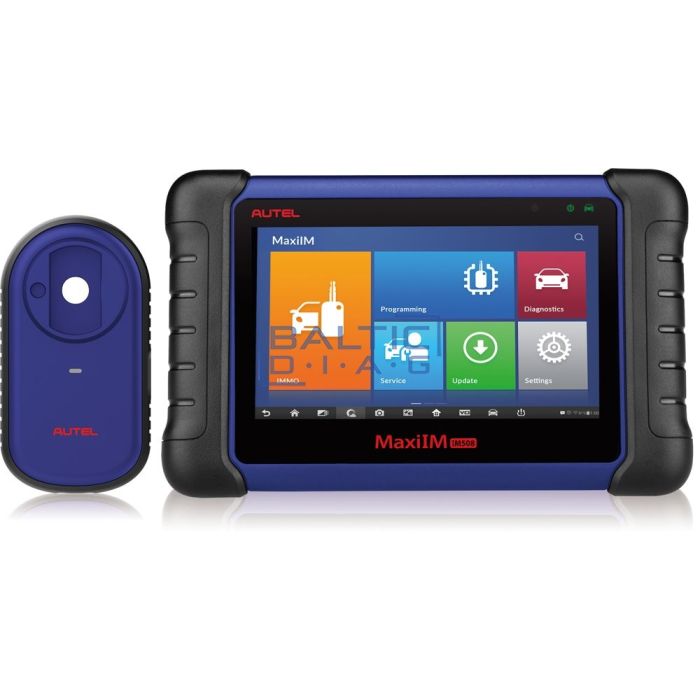

Autel MaxiIM IM508
MaxiIM IM508 is a fast, easy-to-use, and ultraportable immobilizer and key programming device. The Android-based touchscreen tablet features powerful quad-core processor, intuitive design and straight-forward interface. Euipped with the XP200 key programmer, IM508 is capable of providing extraordinary service functions for the immobilizer system. Together with the ability to quickly diagnose all modules of the majority of the makes and models on the market, IM508 provides you with superior special functions. IM508 is the perfect solution for shops and technicians who demand affordable and powerful IMMO and diagnostic services.
- Powerful Cortex-A9 processor
- 7” 1024x600 LCD capacitive touchscreen
- Internal reliable 32GB Memory
- Android Operating System for fast boot-up and multitasking
- Powerful combination of key programming/all system diagnostics/advanced maintenance services
- Smart Mode for guided and automated key learning
- Expert Mode for advanced key learning
- Read PIN/CS (all key lost) , key generation, key learning, remote learning
- IMMO ECU reset/adaptation, refresh/coding
- Transpronder read/write, EEPROM/MCU read/write
- Powerful OE level diagnostics for more than 80 US, Asian and European makes and models
- Advanced maintenance services including EPB, DPF, SAS, Oil reset, BMS and TPMS sensor ID relearn
| Operating System | AndroidTM 4.4.4 | |
| Processor | Cortex-A9 processor (1.6 GHz) | |
| Memory | 32GB | |
| Display | 7-inch LCD capacitive touchscreen with 1024x600 resolution | |
| Connectivity | Mini USB 2.0 USB 2.0 Wi-Fi Micro SD card (supports up to 32GB) |
|
| Sensors | Ambient light sensor for brightness auto changing | |
| Audio Input / Output | Input: N/A Output: buzzer |
|
| Power and Battery | 3.7 V/5000 mAh lithium-polymer battery, Charges via 5 VDC power supply | |
| Tested Battery Life | Around 4.5 hours of continuous use | |
| Battery Charging Input | 5 V/1.5 A | |
| Power Consumption | 500 mA (LCD on with default brightness, Wi-Fi on) @3.7 V | |
| Operating Temp. | 0 to 50°C (32 to 122°F) | |
| Storage Temp. | -20 to 60°C (-4 to 140°F) | |
| Operating Humidity | 5% - 95% non-condensing | |
| Net Weight | 788 g (2.42 lb.) | |
| Supported Automotive Protocols | ISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, ISO11898 (Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610,GM UART,UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6 |
Accessories:
AAC001 – MED17 Cable
Honda-3 Adaptor
KIA-20 Adaptor
KIA-10 Adaptor
Mazda-17 Adaptor
XP200 Key Programmer
MaxiIM IM508 Tablet
USB External Power Adapter
Carrying Case
Main cable
Quick guide
Mini USB Cable
